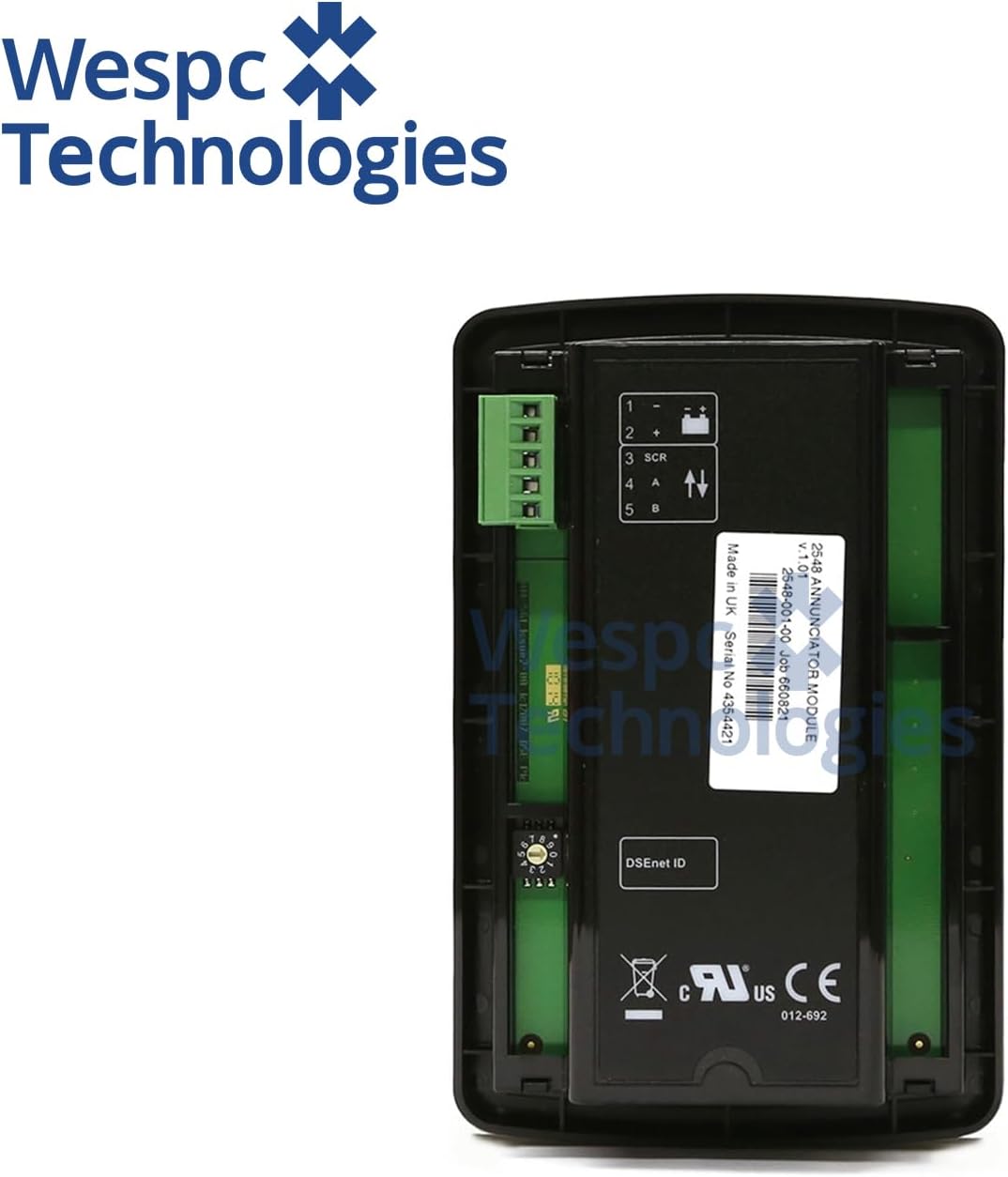

WESPC Original DSE2548 Made in UK LED Output Expansion Module Remote Annunciator
Product details
| Management number | 222343847 | Release Date | 2026/05/04 | List Price | US$144.00 | Model Number | 222343847 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
WESPC Original DSE2548 Made in UK LED Output Expansion Module Remote Annunciator The DSE2548 is an output expansion module that can display a maximum of eight individual LED indications. Each indication is user configurable via the host module. Up to 10 DSE2548 modules can be linked together to provide up to 80 additional LED outputs. The DSE2548 can be located up to a maximum of 1 km (0.6 mile) away from the host control module. OVERALL SIZE180 mm x 116 mm x 43 mm (7.1” x 4.6” x 1.7”) ANEL CUTOUT SIZE154 mm x 98 mm (6.0” x 3.9”) MAXIMUM PANEL THICKNESS8.0mm (0.3”) WEIGHT 0.36kg PRODUCT VARIANTS2548-01 -2548 Output Expansion Module
- Core Function: Output expansion module with max 8 individual LED indications.
- Configurable & Expandable: LED indications user-configurable; up to 10 modules link for 80 LEDs.
- Long-Distance Placement: Up to 1km away from host control module.
- Installation Specs: 180×116×43mm; cutout 154×98mm; max panel thickness 8mm.
- Lightweight & Variant: 0.36kg; Model 2548-01 output expansion module.
| UPC | 704543619254 |
|---|---|
| Brand Name | Auto Engineering |
| Part Number | DSE2548 |
| Manufacturer | Auto Engineering |
| Included Components | 1*DSE2548 |
