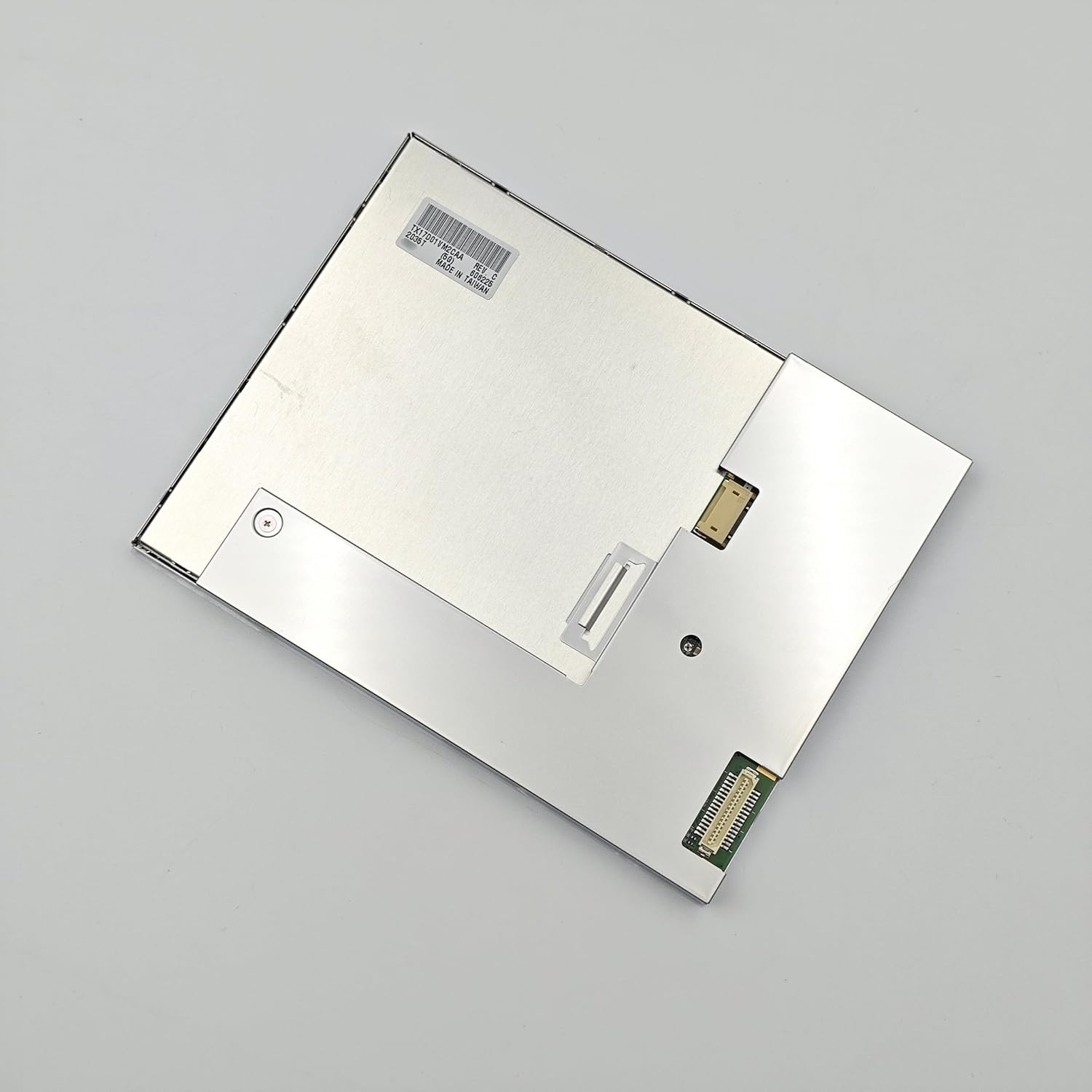

TX17D01VM2CAA 6.5 Inch 640x480 VGA TFT LCD Display Module for Industrial

Product OverviewThis 6.5-inch TFT-LCD display module, identified as TX17D01VM2CAA, is a practical and durable visual component engineered for industrial control systems, test instrumentation, medical displays, and embedded HMI applications. With a native resolution of 640×480 pixels (VGA) and an RGB vertical stripe pixel arrangement, it reproduces clear text, precise graphics, and stable video output for professional use.Display PerformanceThe transmissive TN normally-white panel delivers a typical brightness of 600 cd/m² and a contrast ratio of 600:1, providing excellent readability even in environments with strong ambient lighting. The viewing direction is optimized for the 6 o'clock orientation, with horizontal viewing angles of 80° left and right, and vertical angles of 60° (up) and 80° (down) at CR≥10. It supports 262,144 colors (50% NTSC color gamut), meeting the needs of most industrial monitoring and user interface scenarios.Mechanical Specifications and DurabilityThe module measures 153 mm (H) × 118 mm (V) × 9.4 mm (D) in physical size, with an active display area of 132.48 mm (H) × 99.36 mm (V). It weighs approximately 190 grams. Built to withstand harsh conditions, it operates reliably from -20°C to +70°C and can be stored between -30°C and 80°C. The assembly has passed 2.0G (19.6 m/s²) vibration testing, ensuring stable performance in moving or high-vibration equipment.Backlight and InterfaceThe integrated WLED backlight uses a 3S4P configuration and is rated for a long operational life of 70,000 hours. An on-board LED driver is included, eliminating the need for external driving circuits. Signal connection is made via a 31-pin CMOS interface supporting 1-channel 6-bit data transmission. Power requirements are straightforward: a typical 3.3V DC supply with a total power draw of 4.55W (typical). Please note that this model does not include a touch panel, and the frame rate is fixed at 60Hz.Application NotesThis display is ideally suited for new system designs or as a drop-in replacement in existing industrial equipment. Its compact form factor, low power consumption, and robust environmental tolerance make it a dependable choice for engineers and system integrators requiring long-term supply stability and consistent optical performance.

• Native VGA resolution & industrial-grade response：This 6.5-inch TFT-LCD module delivers a sharp 640(RGB)×480 (VGA) image with a typical response time of 30ms (Tr+Td), suitable for real-time monitoring and control interfaces.
• High-brightness display with extended LED backlight life：Typical luminance of 600 cd/m² ensures clear visibility under bright working conditions. The 3S4P WLED backlight is rated for 70,000 hours and includes a built-in driver for simplified integration.
• Wide-temperature operation and vibration resistance：Supports operating temperatures from -20°C to +70°C and storage from -30°C to 80°C. Withstands 2.0G (19.6 m/s²) vibration, making it reliable for demanding industrial environments.
• Optimized optical performance：Typical 600:1 contrast ratio with viewing angles of 80°/80° (horizontal) and 60°/80° (vertical) at CR≥10. The 6 o'clock viewing direction is well-suited for standard front-facing panel installations.
• Low-voltage CMOS interface and energy efficiency：Uses a 31-pin CMOS connector (1-channel, 6-bit) for straightforward connection to common mainboards. Operates on 3.3V typical supply with only 4.55W typical power consumption.
