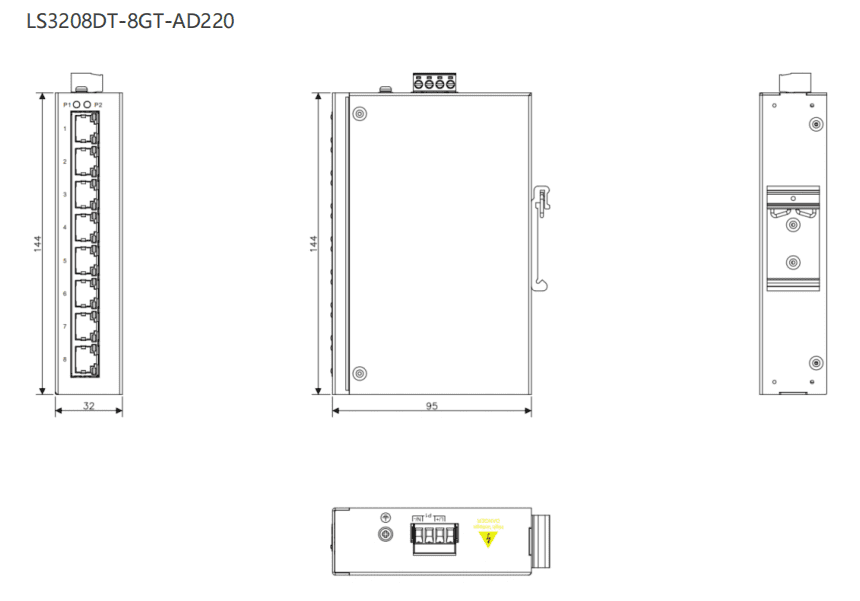

Industrial 8-Port Gigabit DIN-Rail Unmanaged Ethernet Switch AC/DC

LS3208TD-8GT-AD220 Industrial 8-Port Gigabit DIN-Rail Unmanaged Ethernet Switch<br><br>Product Overview<br>The LS3208TD-8GT-AD220 is a rugged, unmanaged industrial Ethernet switch designed for reliable network connectivity in demanding environments. With 8 Gigabit ports, wide-range power input, and a robust metal fanless design, it ensures stable data transmission for automation, surveillance, and infrastructure applications. Plug-and-play operation makes installation simple, while its DIN-rail form factor saves space in control cabinets.<br><br>Key Features<br><br>8 Gigabit Copper Ports: Features 8 x 10/100/1000Base-TX RJ45 ports for high-speed network access.<br><br>Wide Power Input Range: Supports AC 85–264V / DC 100–300V single power input, suitable for various industrial settings.<br><br>Rugged Industrial Design: Metal housing, IP40 protection, fanless operation, and DIN-rail mounting ensure durability in harsh conditions.<br><br>Extended Temperature Range: Operates reliably in temperatures from -40°C to +75°C.<br><br>Plug-and-Play: Unmanaged design requires no configuration for immediate network setup.<br><br>Advanced Protection: Includes overload and reverse-polarity protection for enhanced safety and device security.<br><br>High Performance: 20Gbps backplane bandwidth, 4K MAC address table, and support for jumbo frames (9216 bytes) enable efficient data handling.<br><br>Long Warranty: Backed by a 5-year warranty for peace of mind.<br><br>Specifications<br><br>Switch Ports: 8 x 10/100/1000Base-TX RJ45<br><br>MAC Address Table: 4K entries<br><br>Priority Queues: 8<br><br>Jumbo Frame: 9216 Bytes<br><br>Switching Method: Store-and-Forward<br><br>Backplane Bandwidth: 20Gbps<br><br>Switching Latency: &lt;10μs<br><br>Power Input: AC 85–264V / DC 100–300V<br><br>Power Consumption: &lt;6W<br><br>Operating Temperature: -40°C ~ +75°C<br><br>Storage Temperature: -40°C ~ +85°C<br><br>Humidity: 5%–95% (non-condensing)<br><br>Housing: Metal, IP40 Protection<br><br>Cooling: Fanless<br><br>Mounting: DIN-Rail (wall-mount optional)<br><br>Dimensions (W x H x D): 32 x 144 x 95 mm<br><br>Weight: ≤ 1 kg<br><br>Compliance: FCC Part15, EN55022, EN62368-1<br><br>Package Includes<br><br>1 x LS3208TD-8GT-AD220 Industrial Ethernet Switch<br><br>1 x DIN-Rail Mounting Accessory<br><br>1 x User Manual

• • Industrial Rugged Design: Built with a metal housing, fanless cooling, and wide operating temperature range (-40°C to 75°C / -40°F to 167°F) to withstand harsh environments like factories and warehouses. Rated IP40 for basic dust protection.
• • Plug-and-Play Gigabit Ports: Equipped with 5x 10/100/1000 Mbps Ethernet ports with auto-negotiation and auto MDI/MDIX, ensuring fast, reliable connections without any configuration needed.
• • Robust Power Supply: Features a wide-range DC 12-48V input with protection against overload, reverse polarity, and supports dual redundant power for critical applications requiring maximum uptime.
• • Easy Installation: Designed for quick and secure DIN-rail mounting (wall-mount optional), saving space in control cabinets and electrical panels.
• • High Reliability & Certifications: Offers trusted performance with a 5-year warranty and compliance with key industrial standards for safety (EN 62368-1) and EMI/EMS.
