BelAire BR10503 Rotary Screw Air Compressor, 10HP, 120-Gallon Tank, 33 ACFM @ 150 PSI, 208–230/460V 3-Phase, Quiet 66 dBA, 3-Year Warranty
Product details
| Management number | 238279411 | Release Date | 2026/07/11 | List Price | US$3,458.00 | Model Number | 238279411 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
<p>BR10503 (10Hp 120 Gallon 3 Phase 208-230/460V): THE QUIET COMPRESSED AIR SYSTEM</p> <p> </p> <p>Ideal for automotive repair and body shops, the BelAire line of rotary screw compressors are built to provide reliable and efficient compressed air in a compact design. BelAire rotary screw compressors allow for 100% duty in a extremely quiet, user friendly package.</p> <p> </p> <p>FEATURES</p> <p>* Low Sound Enclosure<br> * 150 psig Standard<br> * 33 ACFM @ 150 PSIG<br> * Continuous Operating Capability<br> * Space Saving Design, <12 ft2<br> * Across-The-Line Motor Starter<br> * 120 Gallon ASME/CRN Receiver Tank<br> * 208-230/460V 3 Phase, TEFC Motor<br> * 66 dBa<br> * UL and UL-C Approved Control Panel<br> * Shipping Weight (Net Weight): 845Lbs (775Lbs)<br> * 3 Year Warranty</p> <p> </p> <br><br> <p> <br> This item is posted and managed courtesy of Bonanza </p>
- Quiet Operation - Low sound enclosure rated at just 66 dBA for user-friendly performance.
- Powerful Output - 10HP motor delivers 33 ACFM at 150 PSI with 100% continuous duty.
- Heavy-Duty Tank - 120-gallon ASME/CRN receiver tank supports demanding shop use.
- User Ready - Includes across-the-line motor starter and UL/UL-C approved control panel.
- Compact & Reliable - Space-saving design under 12 ft² footprint; backed by a 3-year warranty.

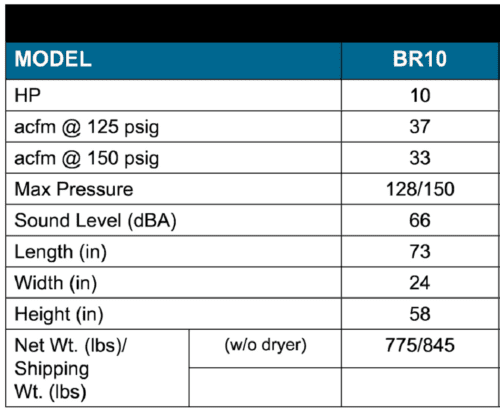

| Cfm | 33 |
|---|---|
| Volume capacity | 120 gal |
| Horsepower | 10 HP |
| Maximum psi | 150 psi |
| Power type | Air |
| Number of stages | 2-Stage |
| Air compressor pump type | Rotary Screw Compressor |
| Air compressor tank type | Rotary Screw |
| Brand | BelAire |
| Features | Quiet Operation |
| Volts | 208 V, 230 V, 460 V |
| Electrical phase | Three Phase |
| Material | Cast Iron |
| Weight | 845 lb |
| Color | Multi-color |
| Model | BR10503 |
